| Place of Origin |
Shandong China (Mainland) |
| Brand Name |
Zhongding |
| Model Number |
MJ6130Y |

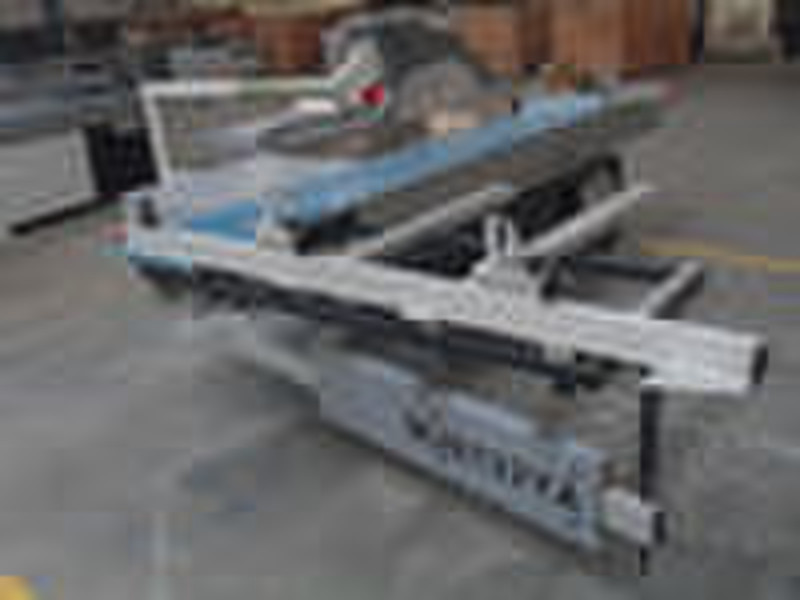

Precise Panel Saw/Sliding PanelTableSaw Functions&Characteristics: Heavy-duty saw carriage securely seated in large cast-iron cradle for maximum support Heavy-duty cross cut fence with quick release Easy-glide sliding table Handwheel adjustment to the height of the bladeHandwheel adjustment to the tilting of the bladesManual adjustments for the scorer Blade tilting angle show by simple index Simple overhead saw guardManual scoring saw +/- direction adjustment The Main Technical Parameter: Sliding table 2200-4000mm Max entent height of main saw table 80mm Saw group tilted angle 0-45° Main Diameter 250-300mm Main spidle Rotation speed 4000/5600r.p.m Main saw motor power 4-5.5Kw Scoring diameter 120mm Scoring blade rpm 8000r.p.m-9000r.p.m Scoring motor 0.75Kw
